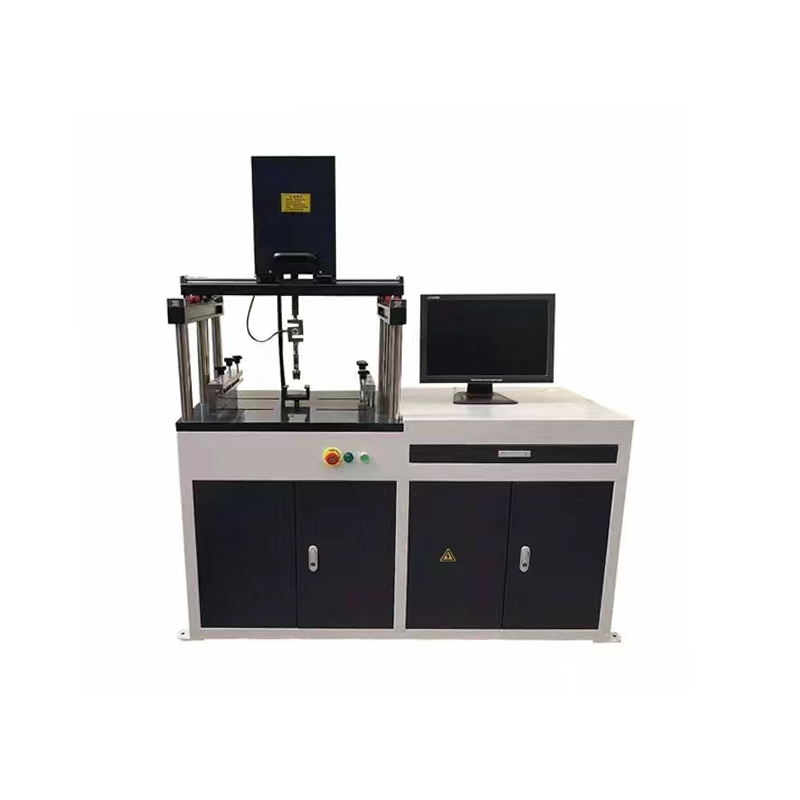

Multi-function Drawing Instrument

1. Maximum pulling force 10KN (5KN optional)
2. Effective detection range: 1%-100% of the maximum experimental force
3.Load resolution: 0.5N or 0.1N optional
4. Load measurement accuracy: better than the display value of the earth 1% or less
5.Drawing speed: 0.05mm -200mn/min Loading speed: 5N/S-1000N/S
6. Tensile range: 100mm
Specimen range: 400mmX 400mm or 400X200mm specimen maximum thickness: 60mm
7. Driving mode: servo motor drive
8. Power supply: single-phase AC 220V / 50Hz
9.Motor power 400 W
10.Dimensions: (L*W*H): 140*74X*179cm
11.Weight: 310kg
