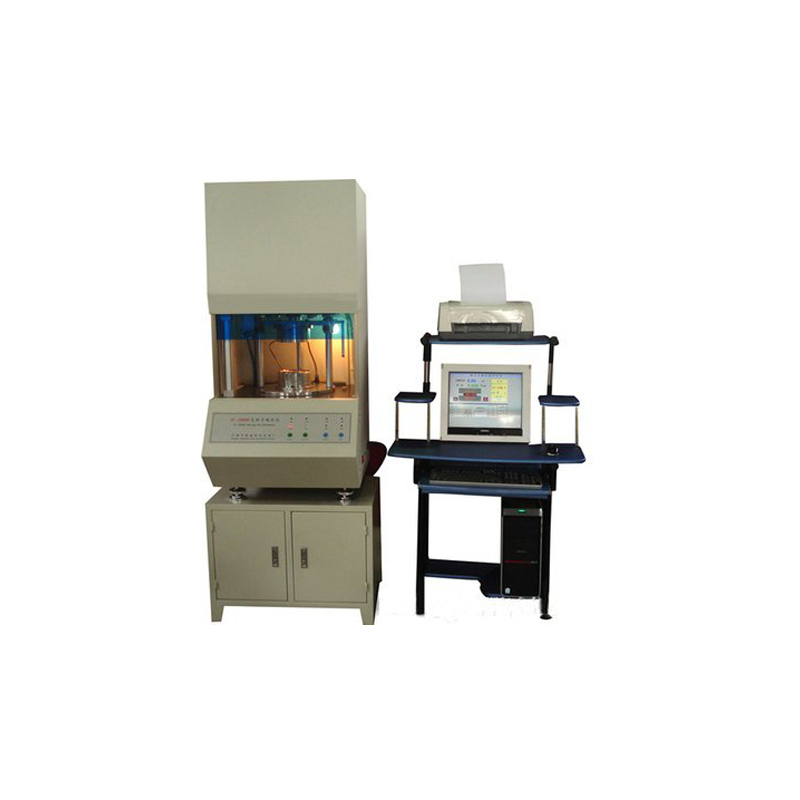

Mooney Viscosity Testing Machine, Rotary Mooney Viscometer

Control temperature range Normal temperature~200℃
Temperature display resolution 0.01℃(0.1 ℃ common type of imported temperature controller temperature)
Temperature control accuracy ±0.3℃
Calibration accuracy Mooney value ±0.5
Rotor speed 2 rotation/ min ±0.02rotation/ min
Torque range

Mooney value 0~200

Torque resolution  Mooney value 0.1
Print content Date, time, temperature, Mooney scorch curve and MV,T5,T35,T3,T18,@15,@30
Power 50HZ, ~220V±10%

Introduction:

Mooney Viscosity Testing Machine Measurement of vulcanization characteristics,

requirements, ISO6502 requirements and Italian standards require T10, T30, T50, T60, T90 data.



Feature:

1.the strong data function can support the drawing, storage and output printing of multiple

curves under the same interface.

2.it support the data query in many forms and output of excel queries and reports

3.it has many analys is function like statics, deviation setting, standards curve setting, and CPK statistical calculation

4.it has such function as interface query, local zoom and curve comparison.

5.selection of any any vulcanization time, range selection and screen capture.

6.analyzed the past test data once again, and increase or modify the reports, to avoid the loss of data.

 7.the test data are stored in the way of database, which is scientist the multiple data sequencing ways are convince for data retrieval and query.

8.the machine will get the characteristic curve and data by measuring the strength of rubber.

9.good reproducible and stasis tics.
