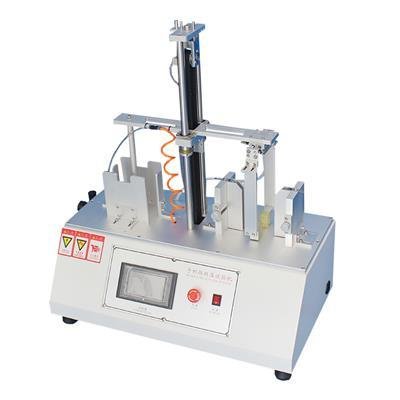

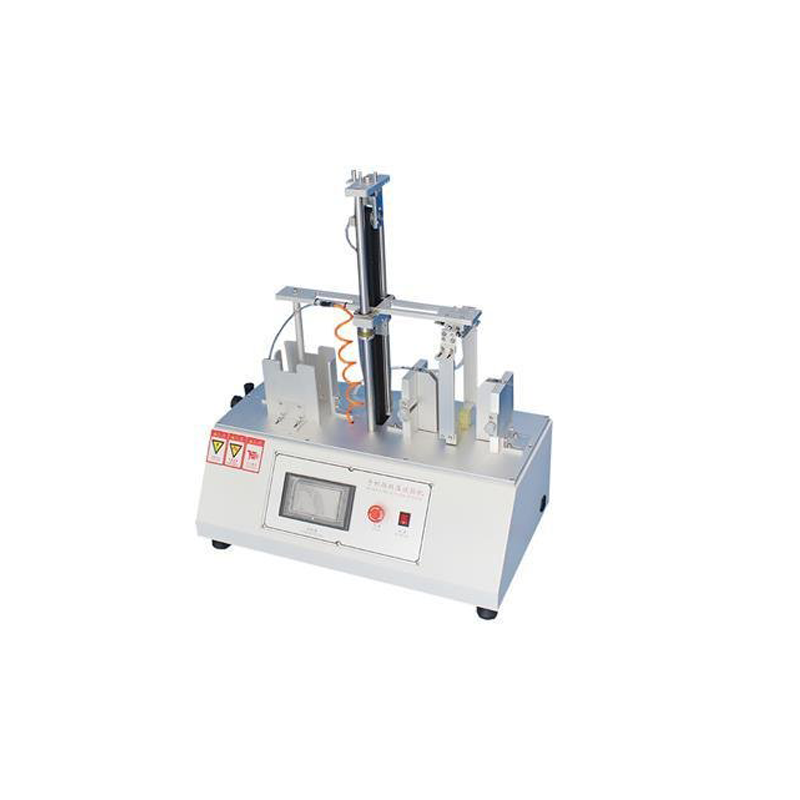

Mobile Phone Micro Fall Tester Mobile Repeating Drop Tester
[rank_math_breadcrumb]
Mobile Phone Micro Fall Tester Mobile Repeating Drop Tester
Application:
Suitable for mobile phones, microdroplet repeat test tablets, electronic dictionary, etc.
If the product to be checked is not functional properly or after a certain cycle test.
Features:
1. All test conditions are input directly through the touch screen.
2. Using Japanese SMC precision pneumatic elements, durable.
Using the Mitsubishi high-quality LCD touch screen + PLC program control.
Technical Parameters:
| Test quantity | 2 PCS |
| peak load | 2Kgf(max) |
| Test height | 300mm (or specified) |
| Test speed range | For 5~25 times / min |
| Fall range | 500x600x 20mm |
| Dimensions (WxDxH) | W420 x D370 x H 950mm |
| Power supply | AC220V 50Hz 3A or user-specified |
| Air source | ≥0.5MPa |
| Weight | 40kg |
