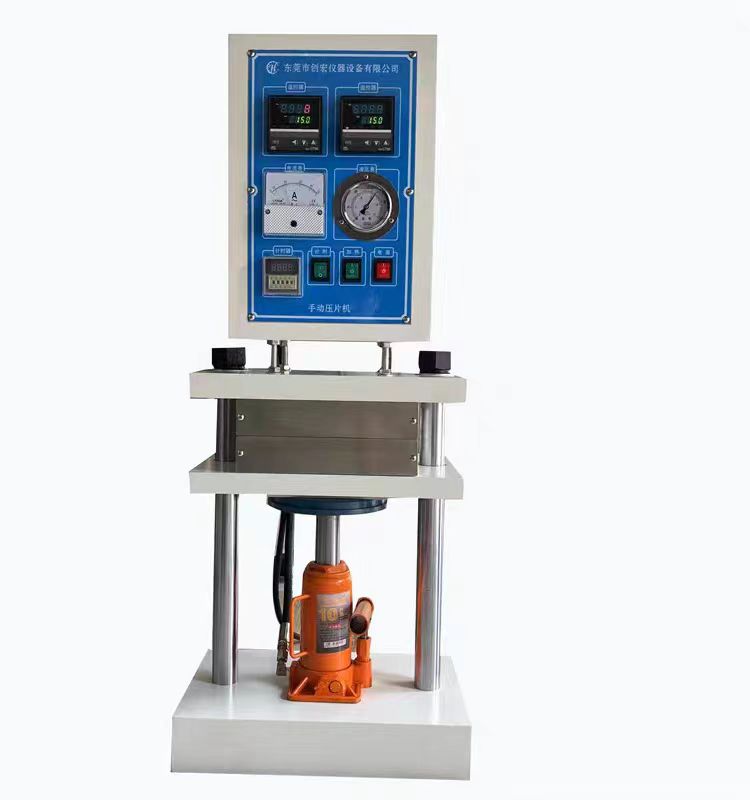

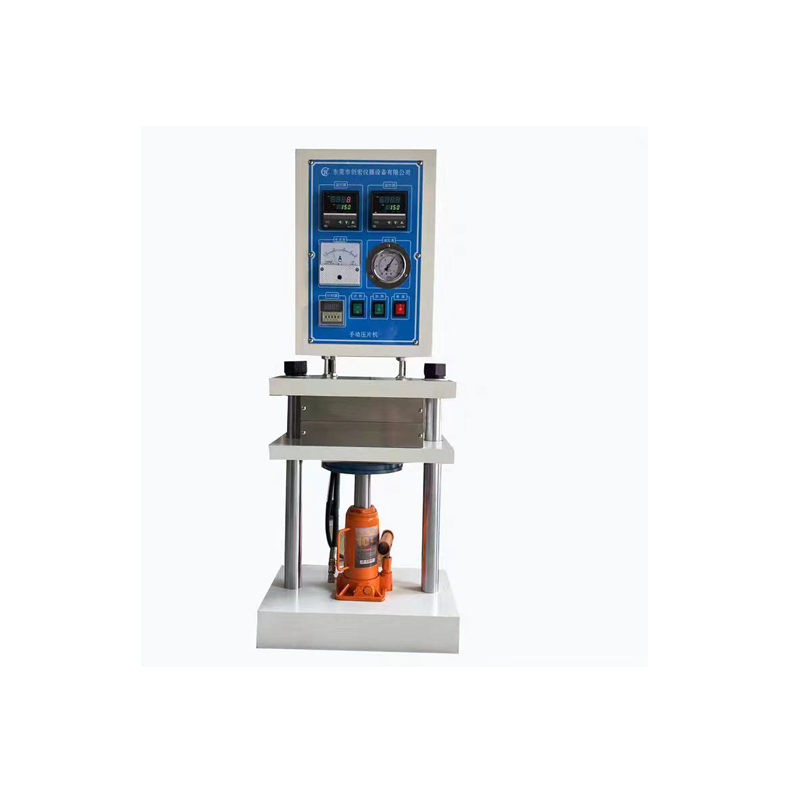

Manual Rubber Heat Flat Vulcanizer

Technical parameter:

Capacity 20T,30T,50T ( Per request)
Temperature range normal temperature ~ 300 ° C
Controller optional electrical control and PLC programmable control
Vulcanization timing 0.1S ~ 99M ~ 9.9H
Heating method electric heating module
Temperature accuracy ± 2 ° C
Hot pressing plate 200×200mm
Cold pressing plate 220×220mm
Platen distance 60mm
Plate material SKD chrome molybdenum alloy
Platen hardness HRC50~60
Plate surface mirror chrome
Platen number single layer
Cooling system none
Oil pressure system GPY oil pump drives high-performance electro-hydraulic with non-resistance cylinder to perform equal-rate control mode, which can preset first and second pressure and time.
Cylinder stroke Max 200mm
Pressure table 0 ~ 350kg / cm2
Power 10.6HP
Volume (W×D×H) 350*350
Power source 3φ, AC380V, 20A three-phase five-wire
Weight
about 117kg
