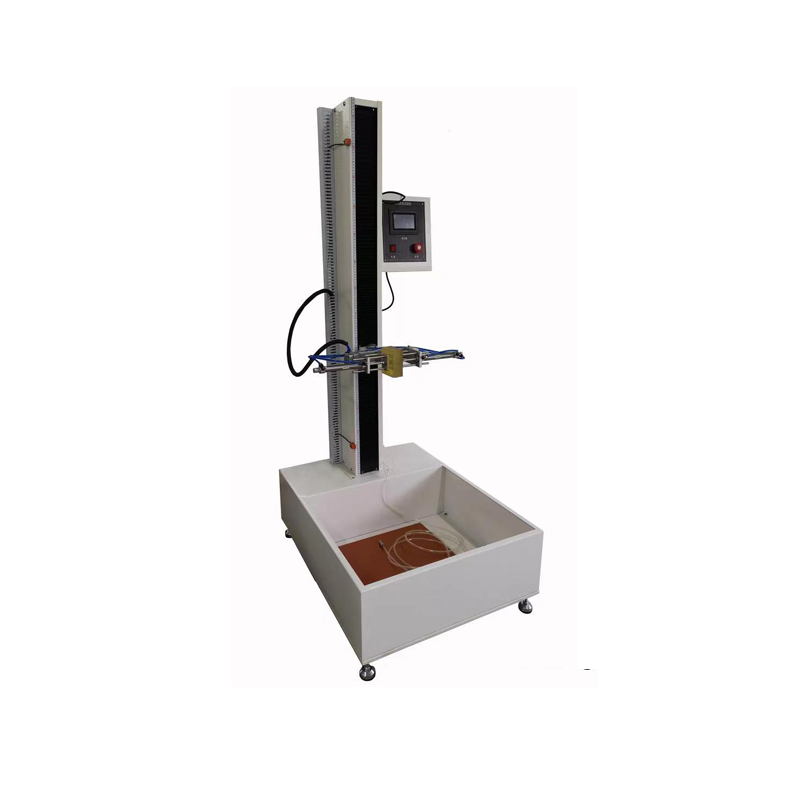

Electronic Devices Or Parts Mobile Phone Earphone Free Dropping Testing Machine

Application:

This tester is used for dropping testing for mobile, phone earphone, interphone, MP3, CD, electronic dictionary, and the other electronic devices or parts. For checking the device quality after N times free dropping off from a stated height and different side, corner and face.

Multi-angle dropping fixture

0°, 45°, 90°

Dropping height indicator

Scale indicator, 1cm Min

Effective dropping height

300~1800mm (optional 2000mm)

Max tested weight

2Kg

Dropping plate

Steel plate, cement floor, wooden plate

Dropping area

500x600mm

Air pressure

≥0.5MPa

Dimension (WxDxH)

1000x1000x2350mm

Main unit weight

125Kg

Power supply

AC220V 50Hz 5A or specified by user

Features:

Easy operation and good price.

Adopt Japan SMC precision pneumatic component, move up and down by hands and there is a scale for indicating the height.

The fixture hold the specimen drop together and release the specimen at about 300mm from the base to keep the expected specimen gesture drop onto the base so that can make sure that expected edges, sides, and corners drop to the base. That can help customer to improve the product’s design by the precise drop testing.

Marble, steel plate, wood plate for dropping plate can be optional.
