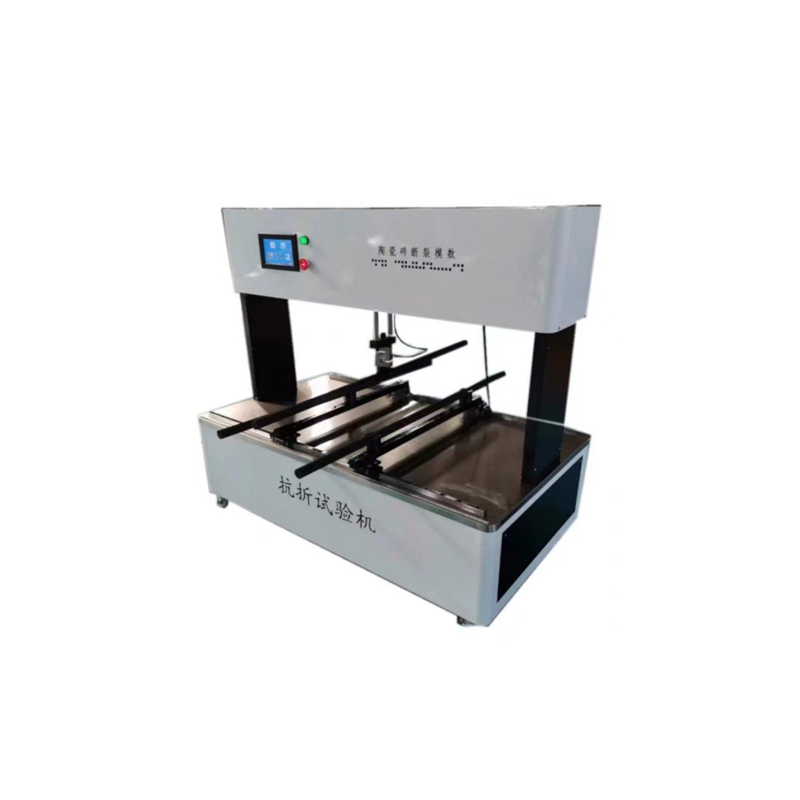

Ceramic Tile Folding Machine

Digital display ceramic tile flexural testing machine (hereinafter referred to as flexural machine) adopts three-point bending beam test to measure the flexural strength to reflect the mechanical properties of the material. Mainly used to measure the bending strength of ceramic tiles, tiles and other materials, especially suitable for large-size, high-strength ceramic tile bending strength test, can also be used for marble plate, glass plate and other brittle non-metallic materials plate bending strength determination.

1. Specification Model: SKZ-10KN-1000
2.Maximum test force: 10000N
3.Table travel: ≤70mm
4. Radius of support roller and pressure knife roller: R=15mm (covered with 5mm thick rubber)
5. Distance between two supporting rollers: 70-1000mm
6. Power supply: 50Hz AC 220V±10%
7. Overall dimensions: 130 × 60 × 145 (cm) (L * W * H)
8.Machine weight: 300kg
